About

Automatic Water Level Controller in Chennai Tamilnadu with float switch from Konkraft (all over India Supply)

What is Automatic Water Level Controller?

Automatic Water Level Controller is fully controlled automatic control system generally used with motors & pumps to store ground level water in Overhead Tank / Sump.

Considering the requirement / demand of water usage and scarcity particularly in regions in and around Tamilnadu and India, we from Konkraft are involved in providing automatic water switch control system for motors and pumps.

Automatic Water Level Controller is an ELECTRONIC control system which when electrically connected to the starter of any given pump set motor will control the operation of the pump set depending upon the water level in the Source and Destination Storage Tanks.


Why Automatic Water Level Controller for motors?

  • When water level in overhead tank drops below pre-set level, AWLC swithces ON the Motor Pump.
  • when water level in overhead tank exceeds full level, AWLC switches OFF the Motor Pump.
  • When water level is highly low in either Sump / Well / Borewell, AWLC switches OFF the Motor Pump.
  • When water level is sufficient in either Sump / Well / Borewell switches ON the Motor Pump.
  • when motor pump dry runs (i.e. water is not being pumped from ground level into Overhead Tank due to any reason), switches OFF the Motor Pump.
  • Low Voltage protection & High Voltage protection for the Motor Pump.
  • Surge Voltage/Current Protection.
  • Each and every functions are automatically performed and not manually.
  • If necessary manual operation is also possible.

Working Principle

Principle of Water Level Controller Sensing System:

In advanced technology of Level Sensing, known as AC SIGNAL SENSING. Based on the principle of conduction through water where 1.5V 100 Hz AC signal will be passed through the water which shall be received through sensors set at desired levels.

This advanced technology of sensing will not result in any corrosion of sensors and deposition of salt on the sensor surface. The main advantage is that sensors need not be periodically cleaned / changed. As the tank water is still and calm, the impurities present in the water shall not affect the performance. Sensor maintenance is absolutely not required as the AWMC life is more than 10 years

Features

Float Switch

Float Switch

Water Float Switch effectively monitor and controls water/liquid levels in the Overhead Tank, Sump, Well etc. It prevents Overhead Tank from overflowing and also over pumping of Sump / Well etc. It allows the user to be away from the botheration of switching the electric water pump ON and OFF and makes water available round the clock.


  • Fully automatic operation.
  • Switches Pump ON when Overhead Tank is empty and Switches Water Pump OFF when Overhead Tank is full.
  • Switches Pump Off when Sump / Well is empty and allow pump to run only when the Sump / Well is filled up to the set limit.
  • Extremely easy to install.
  • No regular maintenance required.

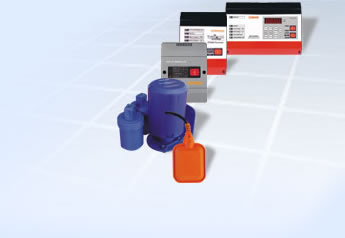

Automatic Water Level Controller along with Float Switch System

Float Switch

Water Float Switch System effectively monitor and controls water/liquid levels in the Overhead Tank, Sump, Well etc. It prevents Overhead Tank from overflowing and also over pumping of Sump and Well. It allows the user to be away from the botheration of switching the electric water pump On and Off and makes water available round the clock.

In addition to the above basic function (as in the Float Switch), the Float Swtich Controller in the Float Switch System prevents pump running when Sump is empty and low voltage operation, high voltage operation and dry run situation, thereby avoiding jam to motor resulting increased availability, cost conservative in electricity and maintenance.

  • Fully automatic / manual operation.
  • Switches Water Pump ON when water level in Overhead Tank is empty and Switches Water Pump OFF when water level in Overhead Tank is full.
  • Switches Water Pump OFF when water level in Sump/Well is empty (even while the water level in Overhead Tank is empty) and allow pump to run only when the Sump/Well is filled up to the set limit.
  • Easy to install and operate
  • No regular maintenance required
  • Single switch operation for Auto ON/Off-Reset /Manual Operations.
  • Split timer for switching the pump ON / OFF in 2 different time slot is available in model 9526BT2 only

Specifications

Specifications

Description Float Switch Float Switch Control System Automatic Water Level Controller Automatic Water Motor Controller Automatic Water Level Controller Float Switch
Model Image Water Switch WC 9525 Water Switch WC 9525X SwitchMate WC 9527 Controller WC 9526B Controller WC 9526BT Controller WC 9526BT2
Model Water Switch Water SwitchX I A & IIA I D & II D I DT & II DT T 2
Operating Voltage (AC) 110 V /240V 110 V /240V 155 V /270V 155 V /270V 155 V /270V 155 V /270V
Operating Current for Load
Resistive Load 15 A 15 A 15 A 15 A N/A N/A
Motor Rating
Direct Load (1 Phase) 1 HP 1 HP 1 HP 1 HP N/A N/A
Indirect Load  (1 or 3Phase) Any Size Any Size Any Size Any Size Any Size Any Size
Operating Method Float, Internal Float, External - - - -
Dry Run Protection No - No Yes Yes Yes
High Voltage Cut OFF (AC) No - No 260 V 260 V 260 V
Low Voltage Cut OFF (AC) No - No 160 V 160 V 160 V
Starter Timer No - No No Yes No
Dimension
Height (mm) - - 126 180 180 180
Width (mm) - - 100 130 130 260
Depth (mm) - - 51 55 55 55

Indications

Indications

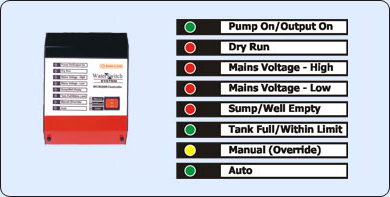

Controller and Indications

Controller and Indications

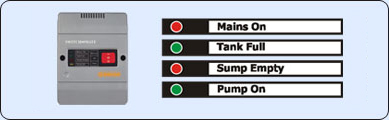

SwitchMate and Indications

Controller and Indications

Configuration

Float Switch System Configurations / Offerings

Configuration Float Switch Dry Run Switch SwitchMate
WC9527
Controller
WC9256 B
Controller
WC9256 BT
Remarks
I A 1 - 1 - - Single tank(overhead tank / Sump)
II A 2 - 1 - - Double tank (overhead tank and Sump)
I D 1 1 - 1 - Single tank with HV/LV/Dry run protection
II D 2 1 - 1 - Double tank with HV/LV/Dry run protection
IDT 1 1 - - 1 Single tank with HV/LV/Dry run protection
IIDT 2 1 - - 1 Double tank with HV/LV/Dry run protection
T2 Twin Timer Based Water Management System For Apartments / Flats / Individual Homes (controller WC 9526BT2)

Offer

What we Offer?

S. No Model Image Functionality Supply
1 Float switch to be installed in overhead tanks with basic ON/OFF function of water pump for filling water in overhead tank. Water Switch ie., float switch (1 No)
2 Float Switch to be installed in  to be installed in tanks and pumps with basic ON/OFF function of water pump for filling water in the overhead tank with complete dry run protection when sump is empty. Water Switch  ie., float switch  (2 Nos)
3 Automatic Water Level Controller with one float switch with basic ON/OFF function for filling water in overhead tank with indication and control. System IA, Float switch 1 no. and 1 No. Switch-Mate.
4 Automatic Water Level Controller with two float switch with basic ON/OFF function of water pump for filling water in the overhead tank with dry run protection from sump empty with indication and control. System IIA, consists of 2 Nos Water Switch and 1 Switch-Mate.
5 Automatic Water Level Controller with one float switch with basic ON/OFF function of water pump for filling water in overhead tank with indication & control, low voltage protection, high voltage protection and also dry-run protection from motor damage, pipe leakage, foot valve block etc.. System ID, consists of 1 No Water Switch, 1 DR Switch & 1 Controller.
6 Automatic Water Level Controller with two float switch with basic ON/OFF function of water pump for filling water in the overhead tank with dry run protection from sump empty with indication & control, low voltage protection, high voltage protection and also dry-run protection from motor damage, pipe leakage, foot valve block etc.. System IID, consists of 2 Nos Water Switch, 1 DR Switch & 1 Controller.
7 Automatic Water Level Controller with one float switch with basic ON/OFF function of water pump for filling water in overhead tank with indication and control, low voltage protection, high voltage protection and also dry-run protection from motor damage, pipe leakage, foot valve block (With timer for starter capacitor). System IDT, consists of 1 Water Switch, 1 DR Switch & 1 Controller.
8 Automatic Water Level Controller with two float switch with basic ON/OFF function of water pump for filling water in the overhead tank with dry run protection from sump empty with indication and control, low voltage protection, high voltage protection and also dry-run protection from motor damage, pipe leakage, foot valve block (With timer for starter capacitor). System IIDT, consists of 2 Nos Water Switch, 1 No DR Switch & 1 No Controller.
